Description

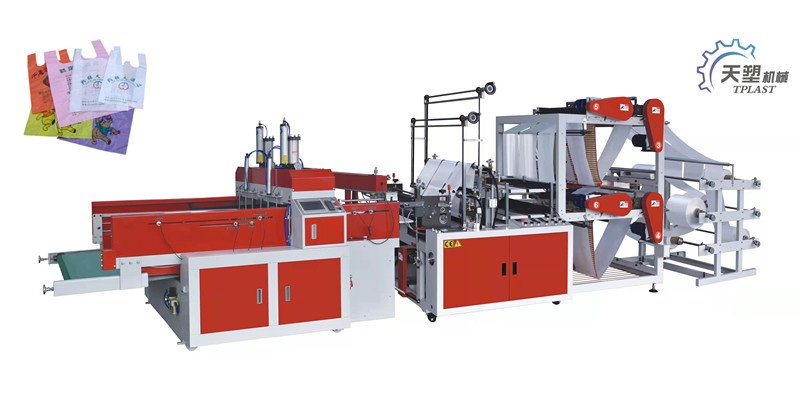

Polythene Bag Making Machine in Nigeria Express Bag Machine
ES Express Bag Special bag Making Machine
USE:
Suitable for BOPP PP, PE, CPP POF, thermal shrinkage material which can be heat sealing. Can produce clothing bag, socks bag, towel bag, bread bag, ornaments bag, underwear bag, stationery bag, electric components bag, bamboo product bag and fruit bag.
Performance and Characteristice:
Microcomputer control, stepping motor feeding, photoelectric tracking, host frequency conversion speed regulation, automatic counting, automatic gluing, static elimination,automatic glue spraying, strong bag opening, overhead break, feeding edge correction.
Samples:
| Technical Specificatopm: | |||||
| Model | DHL-500 | DHL-600 | DHL-700 | DHL-800 | DHL-1000 |
| Maximum bag length | 50-470mm | 70-570mm | 70-670mm | 70-770mm | 70-970MM |
| Maximum bag width | 45-800mm | 45-800mm | 45-800mm | 55-999mm | 60-999mm |
| Maximum bag making speed | 30-300pcs/min | 30-240pcs/min | 30-220pcs/min | 30-220pcs/min | 30-180pcs/min |
| Bag making accuracy | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Total power | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 6.0kw |
| Machinery Weight | 1.2kW | 1.6kw | 2.2kw | 2.6kw | 1100kg |
| Machinery Dimensions | 2600x850x1300mm | 2600x950x1300mm | 2600x1050x1300mm | 2600x1150x1300mm | 2600x950x1300mm |
| Packaging Weight | 800kg | 800kg | 1000kg | 1100kg | 1300kg |
