Description

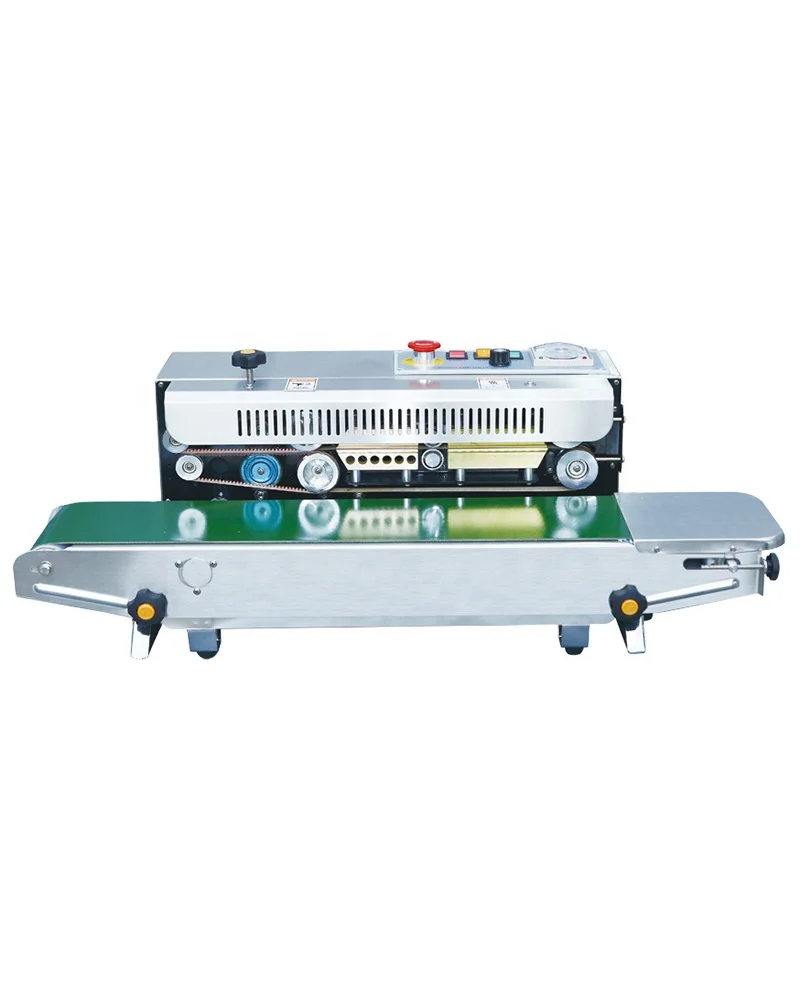

FR900 Horizontal and Vertical Continuous Band Sealer, Multi-Purpose Film Bag Sealing Machine
FR series continuous film sealing machines finish continuous carrying, sealing and printing in one operation.
The machine can be made horizontally, vertically or with stand feet.
It adopts electronic constant temperature mechanism and stepless speed regulating transmission motor.
It can seal plastic film in various kinds of materials.
TECHNICAL DATA
| Model | FR-900 | QLF-1680 | PFS-200 | PFS-300 | PFS-450 |
| Voltage | 220V/50HZ | 220V/50Hz | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Power | 500W | 1000W | 1000W | 400W | 1000W |
| Sealing speed | 0-12m/min | 0-13M/Min | |||
| Sealing width | 6-12mm | 15mm | 200MM | 300MM | 450MM |
| Temperature range | 0-300°C | ||||
| Max.cnveyor loading | 3KGS | 15Kgs | |||
| Weight | 30KGS | 130Kgs | 2.7kg | 4.2kg | 20KGS |
| Size | 860x420x365 | 1700x750x1600mm | 80 x 320 x 150mm | 80 x 450 x 180mm | 470 × 520 x 900mm |
|
Model
|
FR900
|
||
|
voltage
|
220V 50-60Hz
|
||
|
power
|
650W
|
||
|
Sealing speed
|
0-12m/min
|
||
|
Sealing width
|
6-12mm
|
||
|
Temperature range
|
0-300℃
|
||
|
Max. conveyor loading
|
3kgs
|
||
|
Printing category
|
Steel wheel printing
|
||
|
weight
|
Net.23kg
|
||
|
Machine size
|
850X400X305mm
|
||
