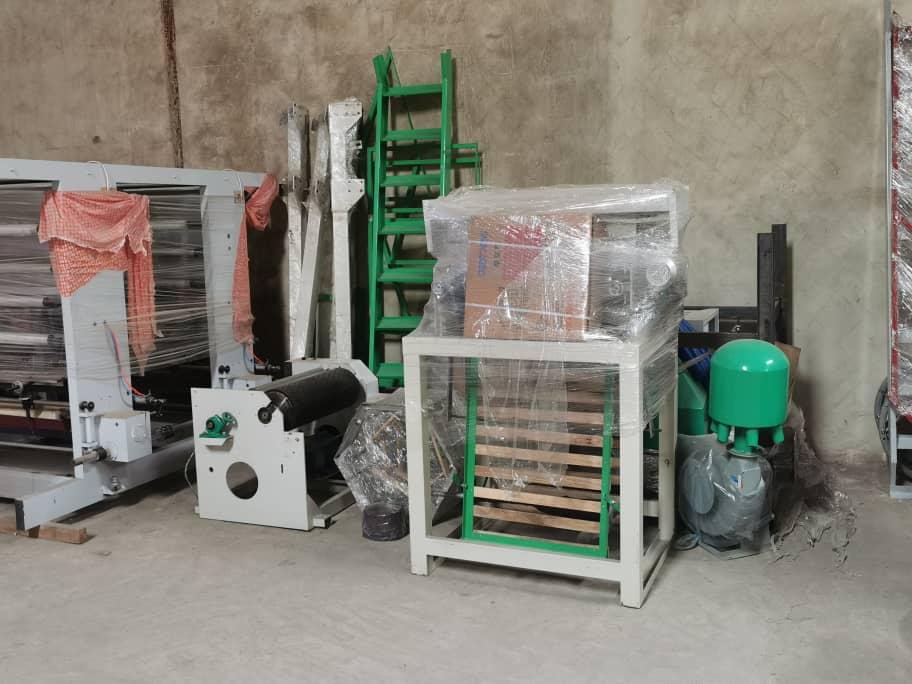

Nylon Making Film Blown Extruder Machine
Blown Film Extrusion Machine , HDPE LDPE Plastic Nylon Extruder Film Blowing Machine
We are Film Blowing Machine, our business is mainly to produce and sell different type Film Blowing Machine, We also can customized product according to the client’s requirement. We are always try our best to become the good Film Blowing Machine manufacturer, Welcome the customer from all over the world to contact with us.
USE:
Used for blowing high and low pressure polyethylene, the products are widely used in composite film, packaging film, agricultural covering film, textile, clothing bag or film packaging; The main motor adopts frequency conversion speed regulation, which increases the stability of the main motor speed regulation and can save electricity by 30%.The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is,big or small,it can achieve the best effect of cooling.
Product Description:
| Model | SJ-A45 | SJ-A50 | SJ-A55 | SJ-A60 | SJ-A65 | ||||
| Suitable material | HDPE,LDPE,LLDPE | ||||||||
| Reduced diameter of film (mm) |
100-500 | 300-600 | 400-800 | 500-1000 | 600-1200 | ||||
| Film thickness of (mm) | HD:0.009-0.05 LD:0.02-0.15 | ||||||||
| Max.output(kg/h) | HD35 LD45 |
HD 40 LD 50 |
HD 50 LD 60 |
HD 55 LD65 |
HD60 LD70 |
||||
| Extruder | |||||||||
| Screw diameter | 45 | 50 | 55 | 60 | 65 | ||||
| Screw L/D | 28:1/30:1 | ||||||||
| Screw material | Sacm-645/38 crmoala | ||||||||
| Cylinder material | Sacm-645/38 crmoala | ||||||||
| Cylinder cooling(w) | 180*2 | 250*2 | 370*2 | 370*2 | 550*3 | ||||
| Main motor(kw) | 11 | 15 | 18.5 | 22 | 22 | ||||
| Cylinder temperature control | 3 | 3 | 3 | 3 | 3 | ||||
| Average power consume(kw) | 10 | 12 | 18 | 25 | 30 | ||||
| Type of die | |||||||||
| Die size(mm) | HD60 LD100 | HD80 LD120 | HD80 LD180 | HD100 LD200 | HD100 LD220 | ||||
| Temperature control | 3 | 3 | 3 | 3 | 3 | ||||
| Air ring | 1 | 1 | 1 | 1 | 1 | ||||
| Air blower power (kw) | 1.5 | 2.2 | 3 | 3 | 4 | ||||
| Center steady stick | 1 | 1 | 1 | 1 | 1 | ||||
| Take up unit | |||||||||
| Roller width(mm) | 160*650 | 160*850 | 165*1100 | 165*1200 | 165*1400 | ||||
| Take-up speed(m/min) | 10-100 | 10-100 | 10-100 | 10-100 | 10-80 | ||||
| Take-up motor(2.2) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | ||||
| Winding Unit | |||||||||
| Type | Surface friction type | ||||||||
| Winding motor(N.m) | 10 | 10 | 10 | 10 | 10 | ||||
| Winding speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 | ||||
| Voltage | 380V,50HZ,3PHASE | ||||||||
| Outline diameter (LxWxH)(mm) |
5000×1800×4200 | 5500*2200*4500 | 5500*2500*5200 | 5000*2400*4200 | 5500*2500*5200 | ||||
| Weight(kg) | 2000 | 2200 | 2500 | 2800 | 3000 | ||||
| Optional equipment |
1.Auto loader 2. Film surface treater 3. Rotary die head
4. Air compressor 5. Mechanics screen changer 6. Double wind
|
||||||||
