Description

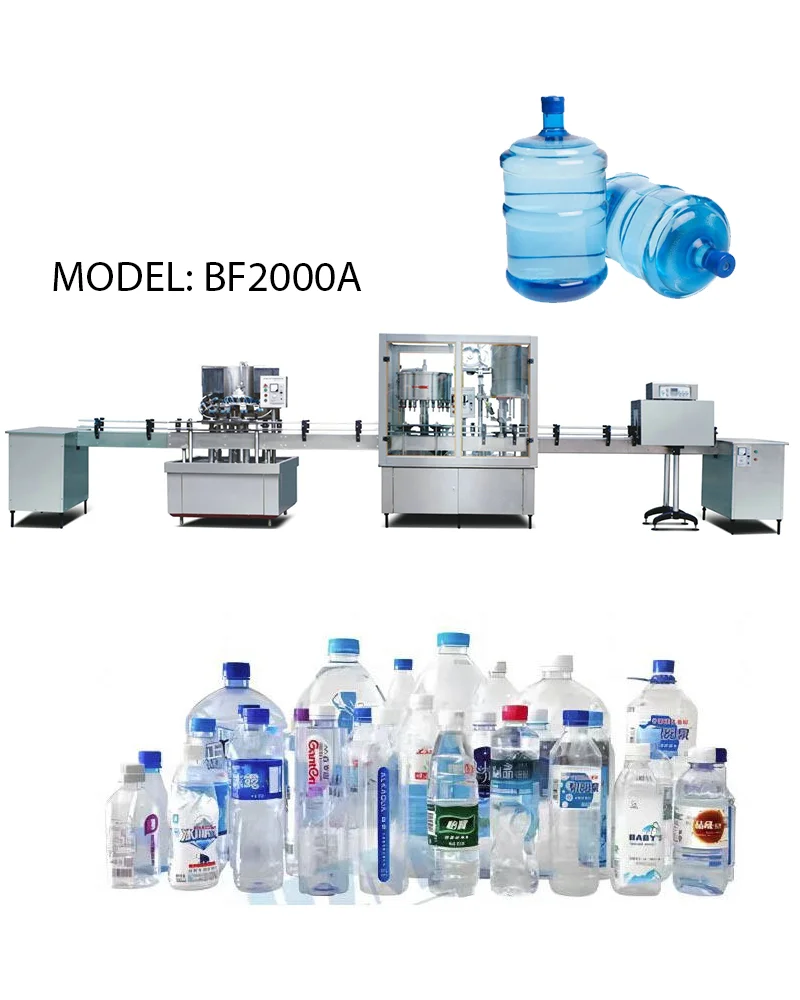

Automatic Bottle Washing, Filling and Capping Line – MODEL BF2000A

The line is composed of bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment, suit for various types of bottles, It is the ideal production line for beverage makers.
TECHNICAL DATA
| Name & Model | ZPC-12 Washer | GC-12 Filler | YQX-3 Capper | BSL1535 Labeler | Conveyor |
| Capacity | 2000-2500 BPH | 1500-3000BPH | 2000BPH | 1500-3000BPH | 100-2500BPH |
| Working Position | 12 | 12 | 1 | ||
| Volume of bottle | 200-1500ML | 200-1500ML | 350-1500ML | 200-1500ML | |
| Power | 0.75Kw 220/380V | 0.75Kw 220/380V | 0.55KW 220V | 3.5KW 220/380V | 0.75Kw 220/380V |
| Dimension | 135x135x190CM | 175x115x200CM | 105x60x80CM | 100x72x220CM | |
| Weight | 800Kgs | 900Kgs | 80Kgs | 200Kgs |
