Description

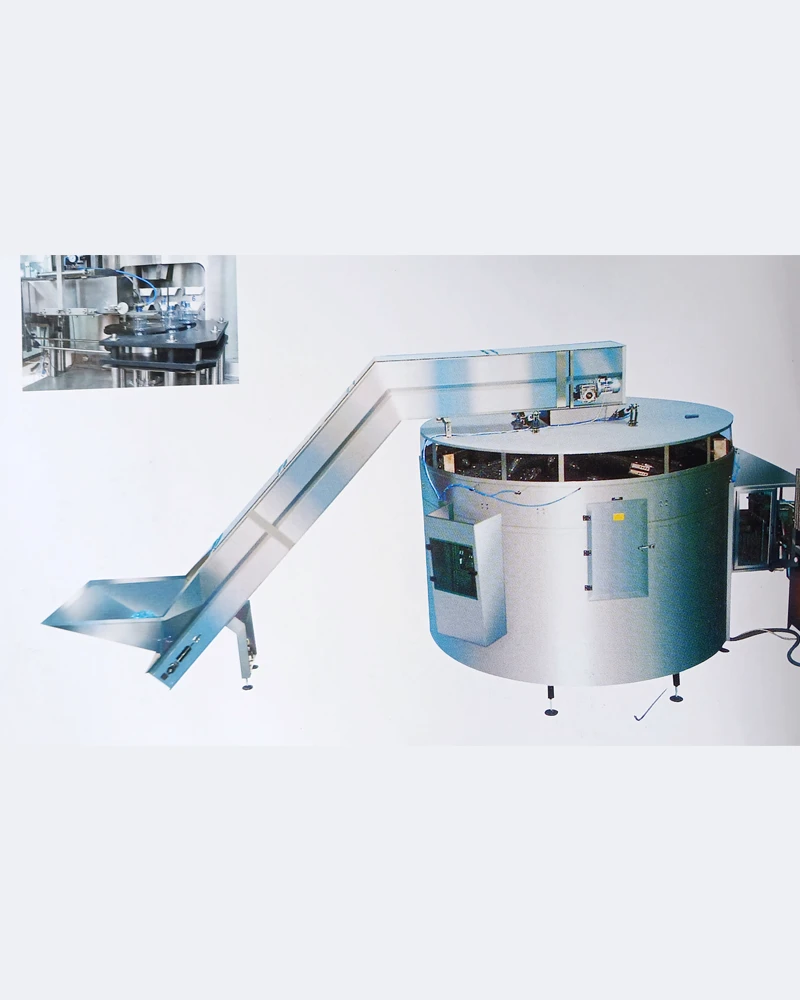

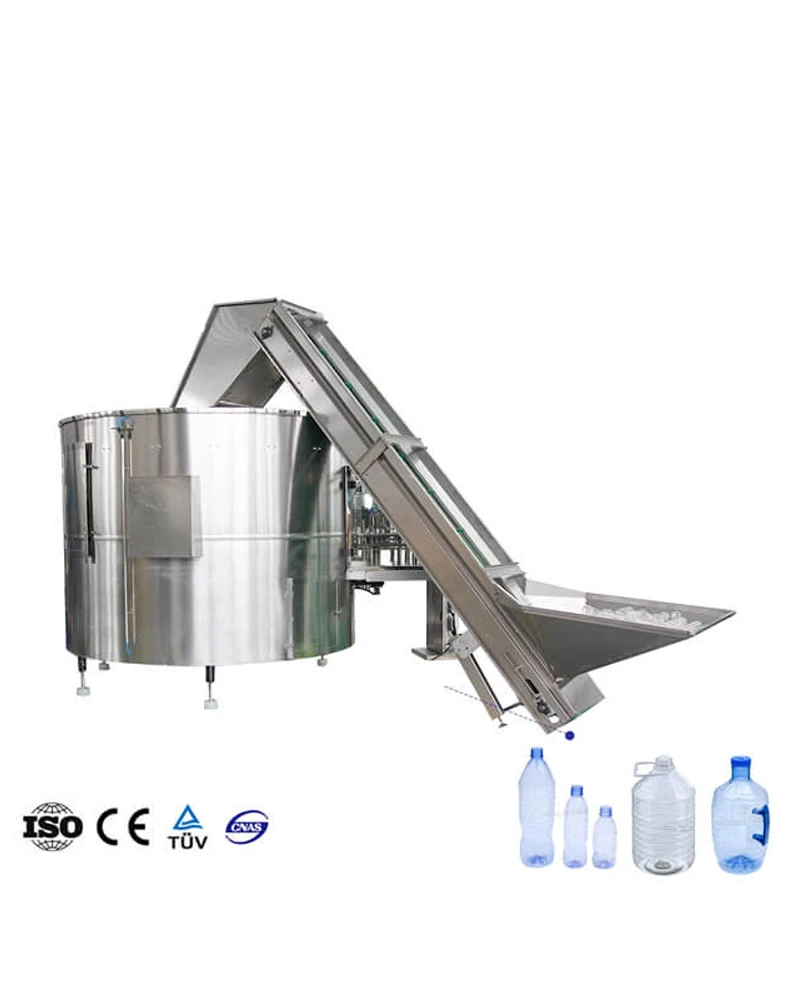

LP-1 Type Automatic Bottle Unscramble machine (LP-1, LP-2, LP-3)
This machine is suitable for unscrambling polyester bottles and make them in one line, then discharge them by vacuum conveyor, its features are as followed: PLC program controlling; digit show speed; automatic. High speed operation, easy to combine with all kinds of filler or filling production line.
Main Technical Specifications
| Model | LP-1 | LP-2 | LP-3 |
| Diameter(mm) | 2450 | 2600 | 3000 |
| Production Capacity(bottle/h) | 8000-10000 | 12000-15000 | 18000-24000 |
| Gas Source Pressure (Mpa) | 0.7 | 0.7 | 0.7 |
| Gas Consuming Volume(M3/min) | 0.4 | 0.6 | 0.8 |
| Suitable Bottle Type(mm) | (Bottle Diameter) 50-90 (Height) 150-290 | ||
| Main Motor Power(KW) | 1.5 | 2.2 | 4 |
| Weight(kg) | 3000 | 4000 | 6000 |
| Overall Dimension (LxWxH) (mm) | 3100x2450x2200 | 3300x2600x2200 | 3700x3000x2200 |
Absorbing foreign advanced technology is the foundation of producing LP-14 type bottle unscramble machine. It is developed and researched according to the requirement of high speed direction and this machine is the leading equipment in domestic market.
Properties and advantage :
- The main motor speed reducer applies torque limit mechanism to avoid harming the machine when trouble happens.
- Twice push rowing bottle mechanism is used to ensure every bottle location has bottle which apparently prompts bottle output efficiency.
- Bottle handling air conveyor prevents bottles from dropping down when in transportation.
- Damaged bottles shall be rejected according to the reject mechanism.
- This machine is equipped with blocking bottle detector. It will stop and alarm when bottle blocks.
- No-bottle detector will send signal to elevator immediately when the bottle quantity is few and elevator shall supply bottles automatically.
- Photoelectric switch is installed on the air conveyor to control the unscramble machine.
- Bottle unscramble machine has oil mouths which make the gear, bearing and cam lubrication conveniently.
- Main electrical appliance (Inverter, PLC, Photoelectric switch, Relay) is from MITSUBISHI、OMRON、SIMENS and so on
- Air system uses TAIWAN AIRTAC.
