Description

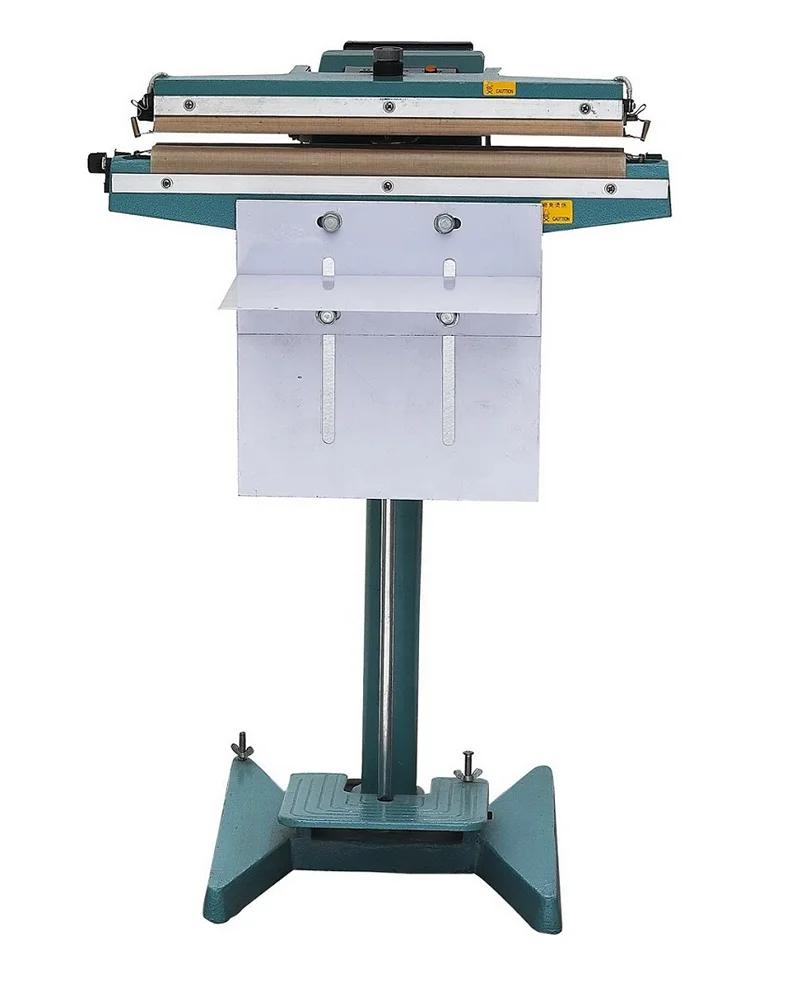

PSF-450 Series Foot Stamping Sealing Machine Sturdy and Durable Aluminum Body for Plastic and Nylon Bag
The PSF series foot stamping sealing machine possesses all functions of other simple foot stamping sealing machines. It can seal polythene, poly propylene and multi-layer compound plastics. Up and down adjustable stuff capping rack, can be used to seal paper bag when heated from top to bottom earning high efficiency, and is irreplaceable by other sealing machine.
TECHNICAL DATA
| Model | FR-900 | QLF-1680 | PFS-200 | PFS-300 | PFS-450 |
| Voltage | 220V/50HZ | 220V/50Hz | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Power | 500W | 1000W | 1000W | 400W | 1000W |
| Sealing speed | 0-12m/min | 0-13M/Min | |||
| Sealing width | 6-12mm | 15mm | 200MM | 300MM | 450MM |
| Temperature range | 0-300°C | ||||
| Max.cnveyor loading | 3KGS | 15Kgs | |||
| Weight | 30KGS | 130Kgs | 2.7kg | 4.2kg | 20KGS |
| Size | 860x420x365 | 1700x750x1600mm | 80 x 320 x 150mm | 80 x 450 x 180mm | 470 × 520 x 900mm |
Specification:
| Model | PSF-350 | PSF-450 | PSF-650 |
| voltage | 500W | 1000W | 1200W |
| Sealing Length | 350mm | 450mm | 650mm |
| Sealing Width | 8mm | ||
| Heat Time | 0.2-2s | ||
| Packing size | 800*530*250mm | ||
| Machine weight | 18kg | 20kg | 24kg |
