Description

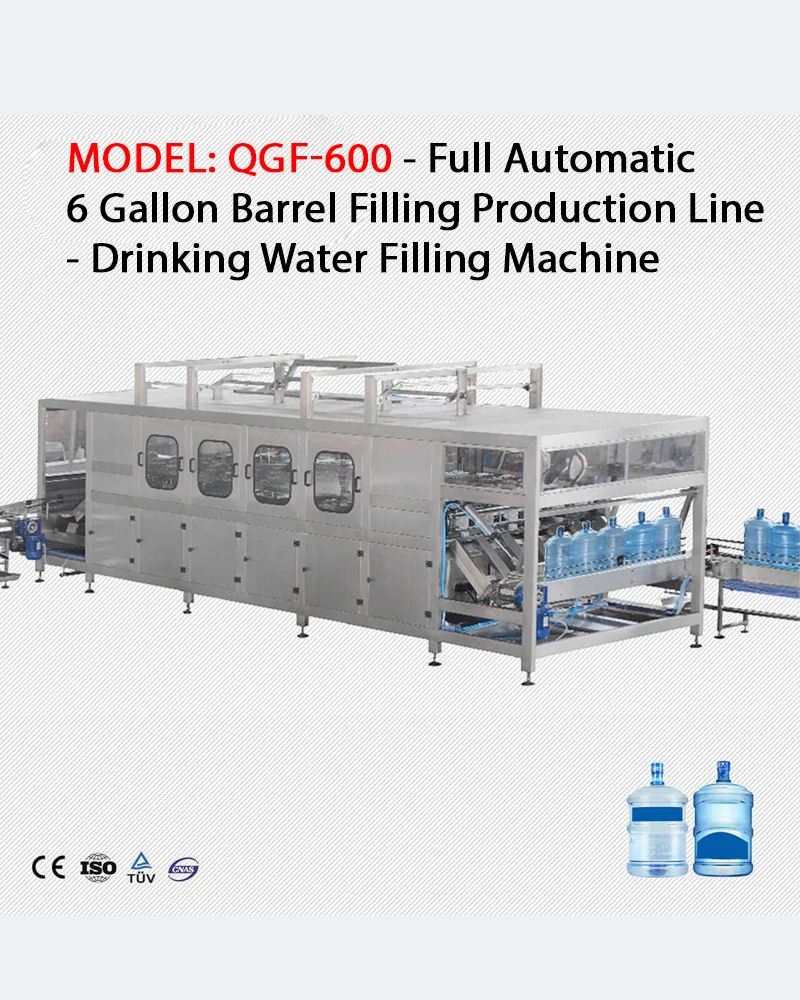

Full Automatic 6 Gallon Barrel Filling Production Line (Model: QGF-600)- Drinking Water Filling Machine
Introduction of Production:

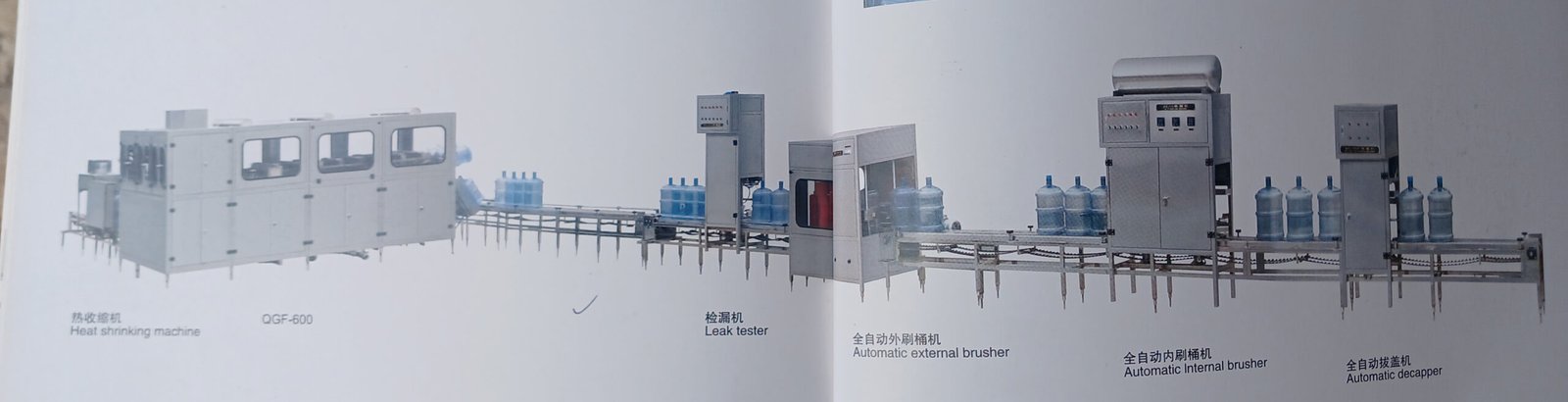

This filling line specially produces 5 gallon barreled drinking water, those types (barrels/hour) are: 80 type, 150 type, 300 type, 450 type, 600 type, 900 type. It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.
Main Technical Specifications
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling Heads | 1 | 1 | 2 | 3 | 4 | 9 |
| (L) Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| (mm) Barrel Size | ¢ 270 × 490 | ¢ 270 x 490 | ¢ 270 x 490 | ¢ 270 x 490 | ¢ 270 x 490 | ¢ 270 x 490 |
| (n) Capacity | 80 | 150 | 300 | 450 | 600 | 900 |
| (mpa) Gas Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| (m3/min) Gas Consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| (kw) Motor Power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| (V) Motor Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| (kg) Weight | 500 | 700 | 1200 | 1600 | 2000 | 3500 |
| (mm) Overall Dimension | 2500x1100x1600 | 2800x1100x1600 | 3800x1300x1600 | 4200x1600x1600 | 4800x1800x1600 | 4200x2300x1600 2800x1000x1600 |
The 5 gallon water filling machine specially for 3 – 5 gallon barreled drinking water ,It integrates bottle washing ,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,the washing machine uses multi washing liquid spray and thimerosal spray ,this thimerosal can be circularly ,the capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilie and clean ,it also can automatically carry out barrel ,washing ,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation .it is a new kind of barreled water auto production line ,which integrates mechanism ,electricity and pneumatics technologies together
Application :
