Description

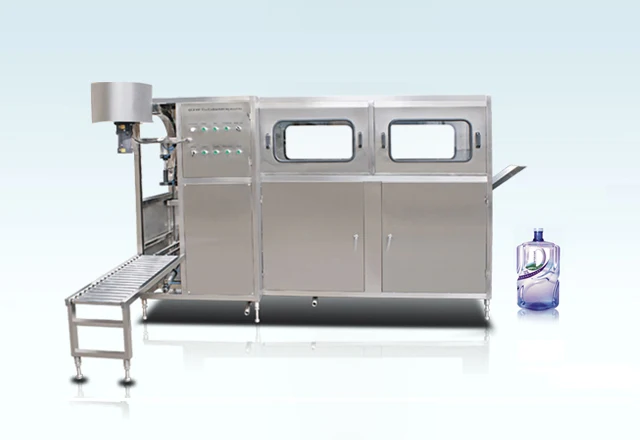

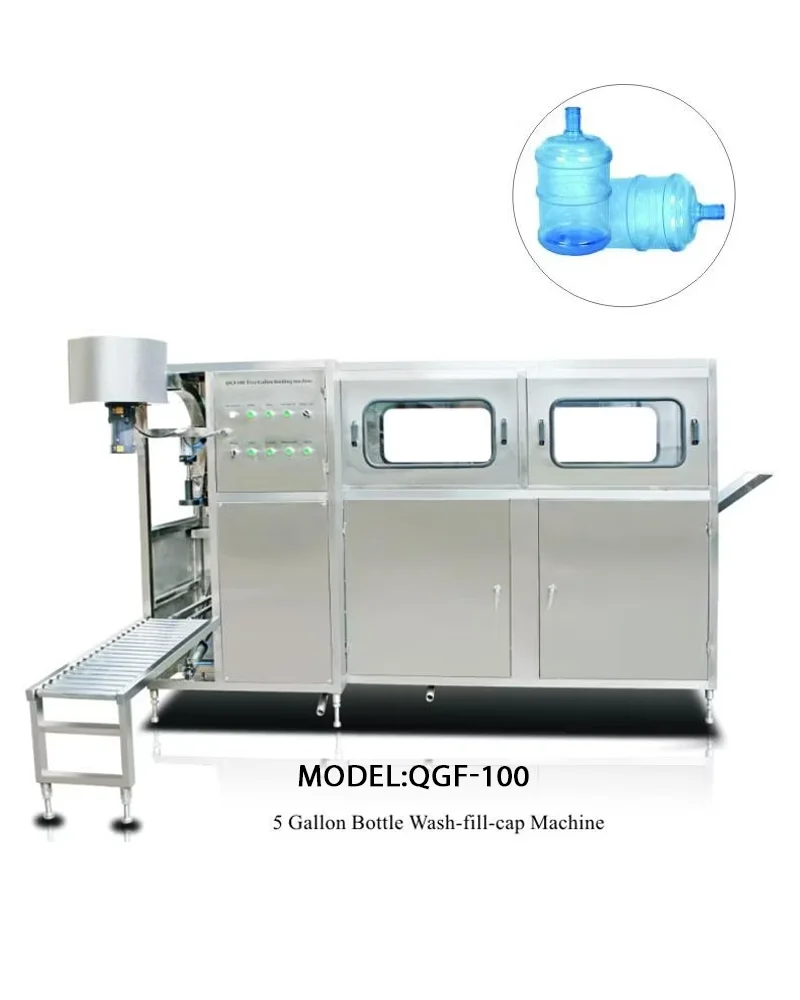

QGF100 5 Gallon Barrel Automatic Water Bottle Washing, Filling and Capping Machine
QGF-100 Five Gallon Bottling Machine is composed of washing, filling & Capping machine into on body especially for the production of drinking water 5 gallons/ 19 liters .The whole line is made of superior stainless steel. The machine is compactly conformed to small occupation of land, high efficiency, reliable and stable quality and high automation.
TECHNICAL DATA
| Model | QGF-100 | QGF-150 | QGF-240 |
| Filling volume | 5gallon | 5gallon | 5gallon |
| Barrel sizes | 276x496mm | 276x496mm | 276x496mm |
| Production capacity | 100BPH | 120BPH | 200BPH |
| Power | 2kw 220V 50Hz | 2.5kw 220V 50Hz | 3kw 220V 50Hz |
| Airsource supply | 400L/min 0.6Mpa | 400L/min 0.6Mpa | 400L/min 0.6Mpa |
