Description

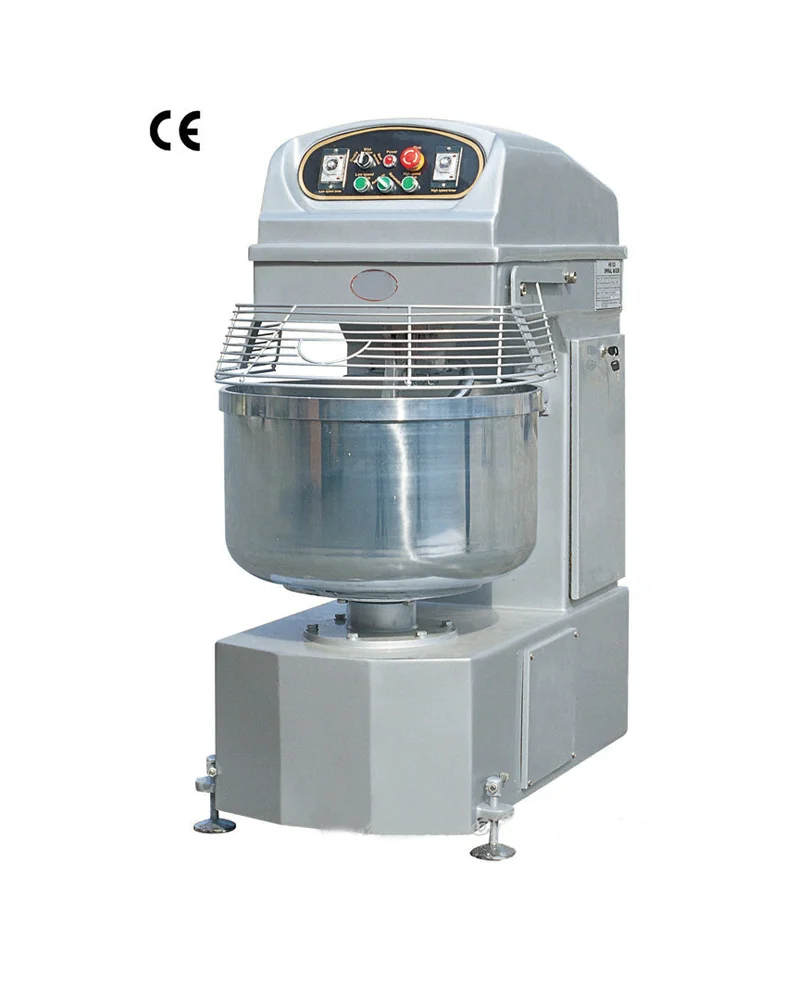

LINKRICH Spiral Dough Mixer HS80/100/130/200

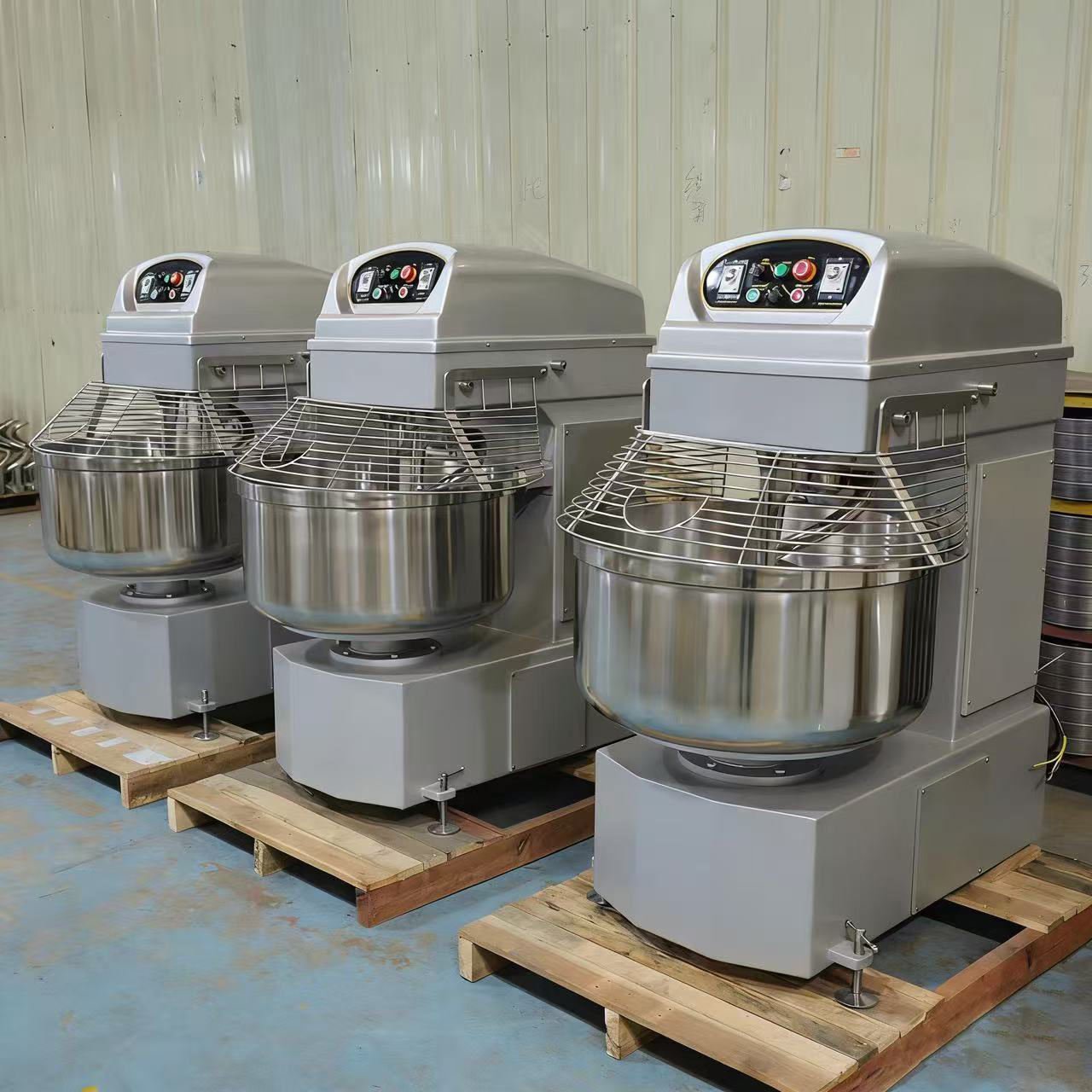

Large Spiral Mixer Series
Large Spiral Mixer series (HS80A, HS100A, HS130A and HS200 A) possess novel and elegant design, robust structures, reliable performances and high automation. They specially cater to bakeries, hotels, restaurants and canteens for kneading dough. Comparing with other mixers, they have the following features:
- Specially designed spiral agitators along with the coordinating speed of rotation of bowls offer the best kneading effect.
- Operation procedures with time control on top covers ensure convenient operation and maintenance.
- In any operation procedure, as long as the high-speed start button is pressed, it can be changed into fast kneading procedure.
- Press the touch-reverse button, and the dough can be easily taken out and the bowls easily cleaned up.
| Model | Rated Voltage (V) |
Power (Kw) |
Bowl Capacity (L) |
Max Flour Capacity (Kg) |
Mixing Speed (r/min) | Bowl Speed (r/min) | Net Weight (Kg） |
Dimension L*W*H (mm) |
| HS80 | 3~380 | 1.5/2.4 | 80 | 25 | 210/107 | 16 | 439 | 1122*682*1305 |
| HS100 | 3~380 | 3/4.5 | 100 | 40 | 210/107 | 16 | 482 | 1160*650*1340 |
| HS130 | 3~380 | 2.8/5.6 | 130 | 50 | 210/107 | 16 | 522 | 1222*750*1430 |
| HS200 | 3~380 | 5/7.5 | 200 | 75 | 200/100 | 16 | 695 | 1332*950*1510 |
