Description

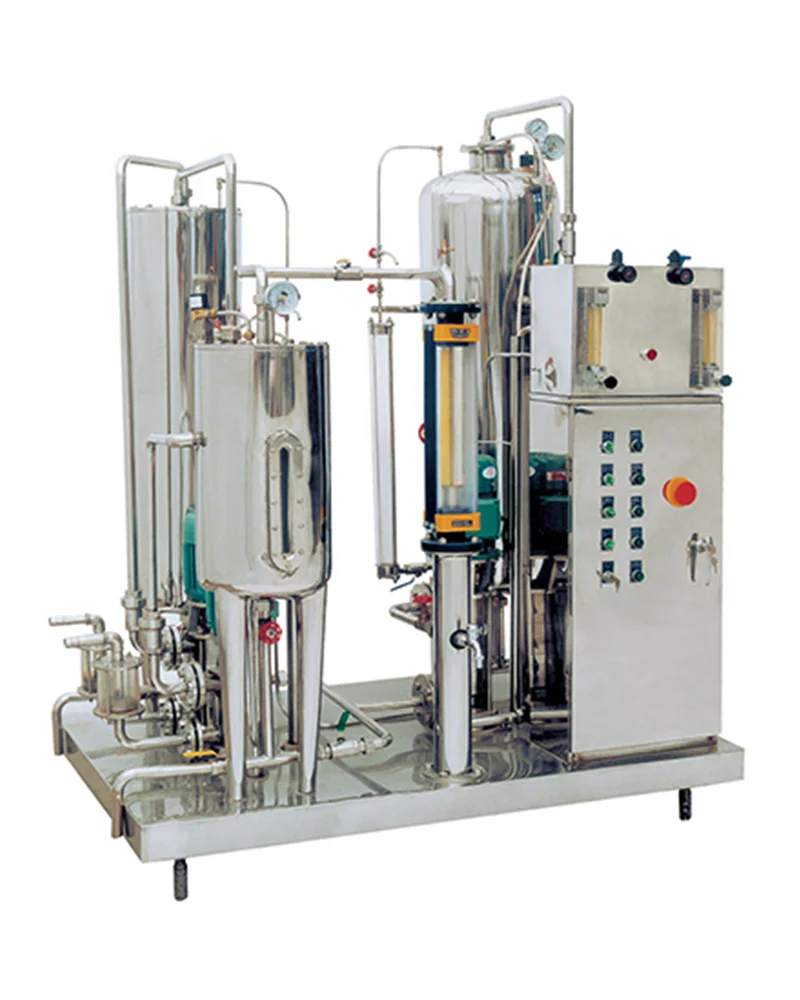

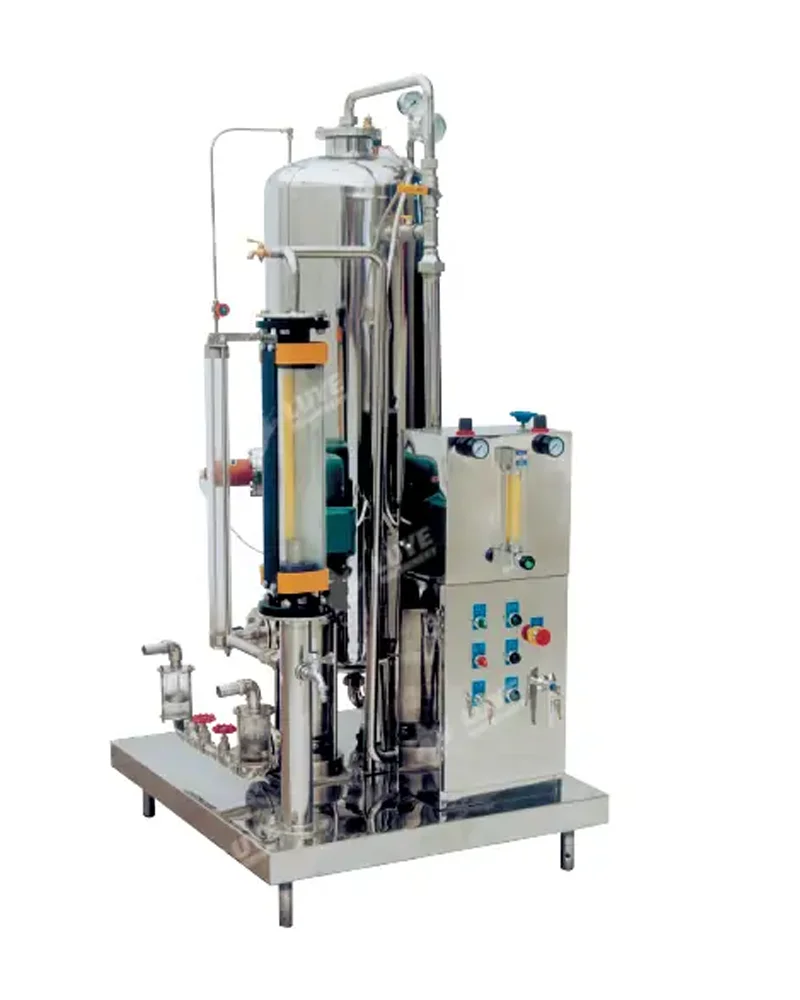

QHS-1500 Series Drink Mixer Beverage Treatment Machine
Characteristics:
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high- quality water pump and SIEMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and hard drinks.
Main Technical Specifications
| Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-6000 |
| Production capacity | 1500kg/h | 3000kg/h | 4000kg/h | 6000kg/h |
| Carbon dioxide content | >=2.5 | >=2.6 | >=2.5 | >=2.5 |
| Inlet temperature of the chilled water | 3-6°C | 3-6°C | 3-6°C | 3-6°C |
| Power | 1.1KW | 2.42KW | 3.1KW | 4KW |
| Overall dimension | 1200*1000*1800 | 1500*1000*2000 | 1660*1000*2000 | 1900*1200*2100 |
| Weight | 200kg | 350kg | 400kg | 500kg |
QHS Series Carbon Mixer Introduction:
The carbon mixer is an advanced inline mixing system engineered to precisely blend syrup, treated water and carbon dioxide (CO₂) into a uniform, fully carbonated beverage in a single continuous process. The product water is degassed and mixed with the syrup in a fixed proportion, cooled to the process temperature through a plate heat exchanger, and then fully mixed with carbon dioxide to complete carbonation.
Using mass flow meters or ratio-based control, the CO2 beverage drink mixer system accurately doses syrup and purified water into a static or dynamic mixing chamber. Liquid CO₂ is then injected under controlled pressure and temperature conditions, where it rapidly dissolves into the liquid stream. The mixture passes through a contact tank or carbonator to ensure complete saturation before being sent directly to the filler.
Carbon Mixer System Features:
- Precise Ratio Control: Digital or PLC-based systems maintain exact syrup: water: CO₂ ratios for flavor consistency.
- High CO₂ Solubility: Optimized pressure/temperature management ensures stable carbonation (typically 2.5–4.5 volumes of CO₂).
- Inline Continuous Mixing: Eliminates batch tanks—reducing footprint, cleaning time, and product waste.
- Hygienic Design: 3-A or food-grade stainless steel (SS304/SS316) construction with CIP (Clean-in-Place) compatibility.
- Real-Time Monitoring: Integrated sensors for pressure, temperature, flow rate and Brix level.
- Energy Efficient: Low-pressure CO₂ consumption with optional recovery systems.
- Scalable Capacity: From 500 BPH (bottles per hour) to 30,000+ BPH for small startups to large-scale lines.

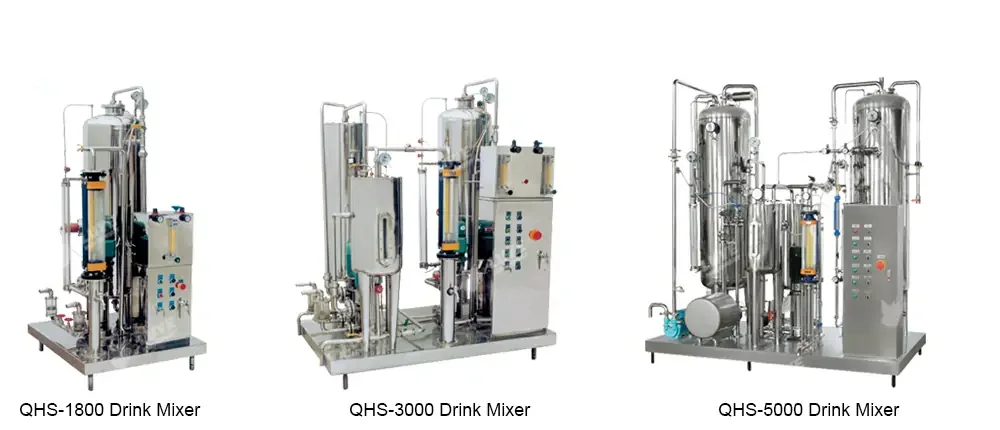

CO2 Beverage Drink Mixer Machine:
| Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-5000 | QHS-6000 | QHS-7000 | QHS-8000 |
| Production capacity | 1000-2000 | 2500-3000 | 3500-4000 | 4500-5000 | 5500-6000 | 6500-7000 | 7500-8000 |
| Adjustable proportion of syrup and water |
1:3-1:10 |
||||||
| CO2 content | 1.5-2.5 | ＞2.5 | ＞2.5 | ＞3.0 | ＞3.0 | ＞3.0 | ＞3.0 |
| Cooling water entry temperature (℃） | 0-5 | ||||||
| Working pressure of carbonized and syrup tank (Mpa) | 0.05-0.15 | ||||||
| Working pressure of storage tank (Mpa) | 0.2-0.5 | ||||||
| Power (kw) | 1.5 | 3.7 | 4.5 | 5.6 | 6.2 | 7.8 | 9.5 |
| Dimension (mm) | 900×700×2000 | 1720×1140×2100 | 1860×1300×2100 | 1960×1400×2150 | 2020×1500×2200 | 2200×1600×2200 | 2300×1700×2200 |
| Weight (KG) | 500 | 1100 | 1300 | 1600 | 1800 | 1900 | 2000 |
