Automatic Bottle Washing, Filling and Capping Line - MODEL BF2000A
Automatic Bottle Washing, Filling and Capping Line - MODEL BF2000A
The line is composed of bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment, suit for various types of bottles, It is the ideal production line for beverage makers.
Automatic Liquid Packaging Machine Model AS1000 - For Sachet Pure Water, Milk, Soyabean Milk and Sachet Packaging Machine
Automatic Liquid Packaging Machine
AS100 Pure Water Automatic Liquid Packaging Machine
It is widely used for packing various kinds of liquid. Such as pure water,
milk, soybean milk, fruit juice, beverage, soy sauce, vinegar and
wine. It uses single lay PE film for packaging material. It is automatic
for ultraviolet radiation, sterilizing bag forming, code printing precisely
filling, and synchronization with sealing and cutting.
This series machines have been long-tested, and their performance
gained a very high reputation from our clients because of the simple
operation and smooth work with low failure rate.
TECHNICAL DATA
Model: AS1000
Capacity: 1500-2000bags/Hour
Volume: 200ml-500ml
Power: 220v/380v 1.6kw
Film Width: 320mm/240mm
Weight: 400kg
Size 970x870x1970mm
CP-30 Semi-Auto Bottle Washing Machine
The washer is a semi-automatic bottle-washing machine. It is widely used for beer, wine, juice, soy source, vinegar and similar products. It is especially suitable for the small or medium amount of productivity. Bottles need to be man-fed, but other jobs are done by machine automatically.
TECHNICAL DATA
Name & Model: CP-30 Waher
Capacity: 1500-2000BPH
Working Position: 30
Volume of bottle:300-1500ML
Power:0.55KW 220V
Dimension: 100x100x140CM
Weight: 130kgs
DCGF18-18-6 Series Balance Pressure 3-in-1 Unit Aerated Water Filling Machine
DCGF18-18-6 Series Balance Pressure 3-in-1 Unit Aerated Water Filling Machine
Usages:
The line is mainly used for washing, filing sealing non-gas drink, such as mineral water, pure water, and so on.
Characteristics:
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
DCGF50-50-18 Balance Pressure 3-in-1 Unit Automatic Aerated Water Filling Machine
Type DCGF three-in-one set is used for aerated water filling. The machine combines washing, filling and cover spinning with complete automation, suitable for aerated water filling into polyester bottles and PET bottles. It can be used for all kinds of bottles. The bottleneck blocking makes the process of changing bottles easy by only adjusting the height of conveyor chain. The filling process adopts the micro-pressure technology, which makes filling process faster and more stable. Compared with other equipment of the same kind, this machine possesses a better quality and thus enjoys a high ratio of function against price.
DINGL DL 18-18-6 Monoblock Bottle Washing, Filling and Capping Machine
Dingli monoblock washing, filling and capping machine offer the industry's most proven washer, filler and capper
technology in one simple, integrated system. In addition they deliver the high performance today's high speed
packaging lines demand.
By precisely matching the pitch between washer, filler and capper, monoblock models enhance the transfer process,
reducing atmospheric exposure of filled product, eliminating dead plates, and significantly reducing feed screw spills.
| Model | DL 18-18-6 |
| Capacity (0.5L) | 6000BHP |
| Washing Heads | 18 |
| Filling Heads | 18 |
| Capping Heads | 6 |
| Model | DL 12-12-5 |
| Capacity (0.5L) | 4000BHP |
| Washing Heads | 12 |
| Filling Heads | 12 |
| Capping Heads | 5 |
DL 8-8-3 Monoblock Bottle washing, Filling and Capping Line
TECHNICAL DATA
| Model | DL8-8-3 Monoblock 2000BPH | Model | BSS-2000 Label shrink tunnel | Model | CLD-120 Cap auto-loader |
| Capacity(0.5) | 2000BHP | Capacity | 2000-5000BPH | Capacity | 1000-10000Pcs/H |
| Washing heads | 8 | Tunnel size | 1000x150x350mm | Power | 0.5Kw 220V |
| Filling heads | 8 | Steam Consumption | 24Kgs/H | ||
| Capping heads | 3 | Steam pressure | 0.1-0.4Mpa | ||
| Power | 2.2KW 380V | Power | 9Kw 220V/380V 50HZ |

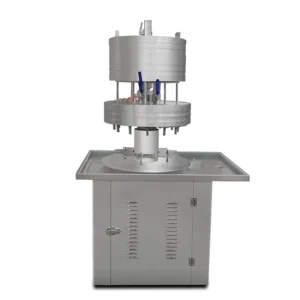

GF-12 Semi-Auto Bottled Water Filling Machine 12 Nozzles Bottle Filler Pure Water Bottling Machine
TECHNICAL DATA
Name & Model: GF-12 Semi-auto Filler
Capacity: 1000-2000BPH
Working Position: 12
Volume of bottle:300-1500ML
Power:0.55KW 220V
Dimension: 105x68x168CM
Weight: 160kgs
HY-99A Semi Automatic PET Bottle Blowing Machine PET, PP and PC Machine
HY-99A Semi-automatic bottle-blowing machines can blow plastic bottles made of PET, PP, PE and PC. One drying tunnel is matched with two blowers, which is small in size, productive and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.
HZ-880 Semi Automatic Stretch Pet Bottle Blow Moulding Machine
HZ-880 SEMI-AUTOMATIC STRETCH BLOW MOULDING MACHINE
TECHNICAL DATA
| Mode: | HZ-880 | HZ-880B | HZ-880C |
| Container volume: | 0.1-2.5L(2-cavity) 3-6L(1-cavity) | 0.1-2.5L (3 cavity) 3-6L(2cavity) | 0.1-2.5L (4cavity) 3-6L (2cavity) |
| Capacity output: | 0.1-1.25 L: 800BPH 3-6L:400BPH | 0.1-1.25 1500BPH | 0.1-1.25 1500BPH |
| Max.bottle height: | 360mm | 360mm | 360mm |
| Max. bottle diameter: | 180mm | 180mm | 180mm |
| Air compressor Power: | 0.6M3 30BAR 10HP | 1.0M3 30BAR 15HP | 1.0M3 30BAR 15HP |
| Power: |
HZ-880C Semi Automatic Stretch Pet Bottle Blow Moulding Machine
HZ-880C SEMI-AUTOMATIC STRETCH BLOW MOULDING MACHINE
TECHNICAL DATA
| Mode: | HZ-880 | HZ-880B | HZ-880C |
| Container volume: | 0.1-2.5L(2-cavity) 3-6L(1-cavity) | 0.1-2.5L (3 cavity) 3-6L(2cavity) | 0.1-2.5L (4cavity) 3-6L (2cavity) |
| Capacity output: | 0.1-1.25 L: 800BPH 3-6L:400BPH | 0.1-1.25 1500BPH | 0.1-1.25 1500BPH |
| Max.bottle height: | 360mm | 360mm | 360mm |
| Max. bottle diameter: | 180mm | 180mm | 180mm |
| Air compressor Power: | 0.6M3 30BAR 10HP | 1.0M3 30BAR 15HP | 1.0M3 30BAR 15HP |
| Power: |
LP-1 Type Automatic Bottle Unscramble machine (LP-1, LP-2, LP-3)
LP Type Automatic Bottle Unscramble machine - LP-1, LP-2, LP-3
This machine is suitable for unscrambling polyester bottles and make them in one line, then discharge them by vacuum conveyor, its features are as followed: PLC program controlling; digit show speed; automatic. High speed operation, easy to combine with all kinds of filler or filling production line.

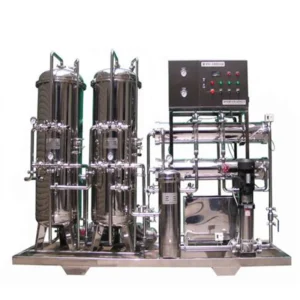

P-RO Series All-in-one Reverse Osmosis Pure Water Treatment Machine
All-in-one ultra-filtration mineral water machine adopt equipment of mechanical filter, active carbon filter and 5micron and 1 micron precision filter as pretreatment according to national standard. Last part of machine is ultra-filtration device. It removes grain, impurity, colloid and residual chloride through reasonable and high efficient pretreatment system; then remove tiny colloid, solvent, macromolecule etc through ultra-filtration device, but keeps ion in the water.
Pure Water Treatment System Reverse Osmosis (P-RO-1, P-RO-2, P-RO-3, P-RO-5, P-RO-1)
All-in-one ultra-filtration mineral water machine adopt equipment of mechanical filter, active carbon filter and 5micron and 1 micron precision filter as pretreatment according to national standard. Last part of machine is ultra-filtration device. It removes grain, impurity, colloid and residual chloride through reasonable and high efficient pretreatment system; then remove tiny colloid, solvent, macromolecule etc through ultra-filtration device, but keeps ion in the water.
The pure water production line is composed of per-filter of stand filter, carbon filter, ion-exchanger and reverse osmosis and ozone generator, it it idea equipment for pure water production as simple techniques, high water quality, easy operation and maintenance.
TECHINCAL DATA
| Model | P-RO-1 | P-RO-2 | P-RO-3 | P-RO-5 | P-RO-10 |
| Capacity | 1000L/H | 2000L/H | 3000L/H | 5000L/H | 10000L/H |
| Pre-filter capacity | 2000L/H | 3000L/H | 5000L/H | 7000L/H | 12000L/H |
| Ozone generator | 6g/H | 6g/H | 12g/H | 12g/H | 24g/H |

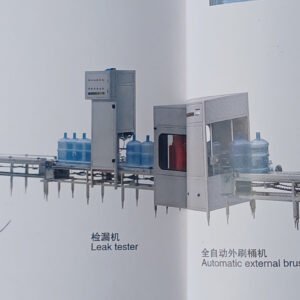

QGF-600 Full Automatic 6 Gallon Barrel Filling Production Line - Drinking Water Filling Machine
Full Automatic 6 Gallon Barrel Filling Production Line (Model: QGF-600)- Drinking Water Filling Machine
This filling line specially produces 5 gallon barreled drinking water, those types (barrels/hour) are: 80 type, 150 type, 300 type, 450 type, 600 type, 900 type. It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.
QGF100 5 Gallon Barrel Automatic Water Bottle Washing, Filling and Capping Machine
QGF-100 Five Gallon Bottling Machine is composed of washing, filling & Capping machine into on body especially for the production of drinking water 5 gallons/ 19 liters .The whole line is made of superior stainless steel. The machine is compactly conformed to small occupation of land, high efficiency, reliable and stable quality and high automation.
TECHNICAL DATA
| Model | QGF-100 | QGF-150 | QGF-240 |
| Filling volume | 5gallon | 5gallon | 5gallon |
| Barrel sizes | 276x496mm | 276x496mm | 276x496mm |
| Production capacity | 100BPH | 120BPH | 200BPH |
| Power | 2kw 220V 50Hz | 2.5kw 220V 50Hz | 3kw 220V 50Hz |
| Airsource supply | 400L/min 0.6Mpa | 400L/min 0.6Mpa | 400L/min 0.6Mpa |
QHS-1500 Series Drink Mixer Beverage Treatment Machine
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high- quality water pump and SIEMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and hard drinks.
Carbon Mixer System Features:
- Precise Ratio Control: Digital or PLC-based systems maintain exact syrup: water: CO₂ ratios for flavor consistency.
- High CO₂ Solubility: Optimized pressure/temperature management ensures stable carbonation (typically 2.5–4.5 volumes of CO₂).
- Inline Continuous Mixing: Eliminates batch tanks—reducing footprint, cleaning time, and product waste.
- Hygienic Design: 3-A or food-grade stainless steel (SS304/SS316) construction with CIP (Clean-in-Place) compatibility.
- Real-Time Monitoring: Integrated sensors for pressure, temperature, flow rate and Brix level.
- Energy Efficient: Low-pressure CO₂ consumption with optional recovery systems.
- Scalable Capacity: From 500 BPH (bottles per hour) to 30,000+ BPH for small startups to large-scale lines.
QHS-3000 Series Drink Mixer Beverage Treatment Machine
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high- quality water pump and SIEMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and hard drinks.
Carbon Mixer System Features:
- Precise Ratio Control: Digital or PLC-based systems maintain exact syrup: water: CO₂ ratios for flavor consistency.
- High CO₂ Solubility: Optimized pressure/temperature management ensures stable carbonation (typically 2.5–4.5 volumes of CO₂).
- Inline Continuous Mixing: Eliminates batch tanks—reducing footprint, cleaning time, and product waste.
- Hygienic Design: 3-A or food-grade stainless steel (SS304/SS316) construction with CIP (Clean-in-Place) compatibility.
- Real-Time Monitoring: Integrated sensors for pressure, temperature, flow rate and Brix level.
- Energy Efficient: Low-pressure CO₂ consumption with optional recovery systems.
- Scalable Capacity: From 500 BPH (bottles per hour) to 30,000+ BPH for small startups to large-scale lines.
QJ-C Carbon Dioxide Filter For Beverage Treatment Machine
QJ-C carbon dioxide filter is applied to improve purity of CO2 and separate
- Production capacity: 6-10kg/h
- Overall dimension(mm): 500*410*1400mm
- Weight: 80kg
